Product Details:
Payment & Shipping Terms:
|
Material: | Galvanized Wire | Wire Diameter: | 1.6mm-3.2mm |
---|---|---|---|
Surface Treatment: | Galvainzed Or PVC | Application: | Animal Farming, Park Fences, Forest Protection |
Feature: | Anti Corrosion | Barbed Distance: | 3"--6" |
Barbed Length: | 1.5-3cm | Package: | Woven Bag |
Type: | Barbed Wire Coil | Color: | Blue ,green, Yellow Etc |
Highlight: | animal farming constantine barbed wire,anti theft constantine barbed wire,constantine barbed wire 2.5mm |
anti-theft barbed wire mesh/design drawing barb wire and professional manufacture/2.5mm electric hot dipped galvanized barbed wire

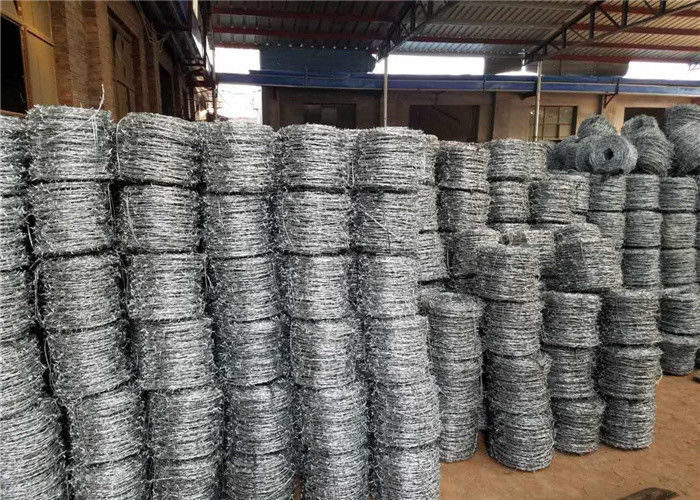

Barbed Wire is made by twisting and weaving, the product is
Characterized by firmness and attractiveness. Galvanized Barbed Iron Wire
In IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches
( Tolerance + 1/2" ).
♦ Material: Galvanized wire,PVC coated iron wire in blue,green,yellow and other colors.
♦ Tensile strength: 350MPa-550mMPa.
♦ Packing:25kg/coil,50kg/coil,binded by metal wire.
Specification detail:
Wire Diameter(mm) | Distance of barb | Twsite Stype |
1.5x1.5 |
3”-5” |
Double Twisted |
1.5x1.7 | ||
1.7x1.7 | ||
1.65x1.65 | ||
1.8x1.8 | Normal Twisted | |
2.0x2.0 | ||
2.0x2.5 | ||
2.5x2.5 | ||
Special size been available based on customers’ request |
Barbed Wire Uses:
Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.
Barbed Wire Specification | ||||
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire
|
10# x 12# | 7.5-15 | 1.5-3 | |
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11#-20# | BWG8#-17# | |||
SWG11#-20# | SWG8#-17# | |||
PVC PE coating thickness:0.4mm-0.6mm; different colors or length are available at customers request |
|
Applications:
* pasture boundary, railway, highway isolated protection
* Land fencing and protection.
* Crop protection.
* Home and business security fencing aid.
Assortments:
* Hot dipped galvanized.
* Electro galvanized.
* PVC coated.
Packing:
1)In Bluk
2) with pallet
Shipping:
1.within 25days can ship the order
2.based on customer's request or negoation
If you want the inquiry,please tell us the specifications below:
1. Barbed wire type
2. Material
3. Wire diameter
4. Barbs space
5. Surface treatment
6. Packing
7. Quantity
