Product Details:
Payment & Shipping Terms:
|
| Material:: | Galvanized Wire | Wire Diameter:: | 2.7 Mm / 3.0 Mm. |
|---|---|---|---|
| Mesh Size:: | 6 Cm × 8 Cm, 8 Cm × 10 Cm. | Roll Width:: | Max.4m |
| Roll Length:: | 50m,100m | Surface: | Galvanized,pvc Coated |
| Highlight: | rockfall fence,metal ring mesh |
||
Galvanized Hexagonal Wire Mesh / Hexagonal Slope Protection Wire Mesh
Product description
Hexagonal wire mesh is made of high carbon steel wire. Tecco mesh system is a kind of active rockfall barrier system, including tecco mesh, wire rope anchor, spike plate, boundary rope, sewing rope and steel clips.
Tecco mesh are used for the following purposes: Overall stabilization and reinforcement of soil slopes and rock slopes, reinforcement of various isolated dangerous rocks, and sliding control measures can also be combined with deep anchoring measures.
The management and production system is certified in compliance with ISO 9001.
| Technicaldata | TECCOG45/2 | TECCOG65/3 | TECCOG65/4 |
| Tensile strength wire mesh | min.85 kN/m | min.150 kN/m | min.250 kN/m |
| Number of meshes transvers al | 16.1 pcs./m | 12 pcs./m | 12 pcs./m |
| Number of meshes longitudinal | 10.5 pcs./m | 7 pcs/m | 7.2 pcs./m |
| Wre diameter | 2.0 mm | 3.0 mm | 4.0 mm |
| Steel quality | high-tensile steel wire | ||
| Diagonal | 62·95 mm(+/-3%) | 83·143 mm (+/-3%) | 83·138mm(+/-3%) |
| Mesh width | 48 mm (+/-3%) | 65 mm (+1-3%) | 63 mm(+/-3%) |
| Weight per m² | 1.15 kg/m² | 1.65 kg/m² | 3.3 kg/m² |
| Corrosion protection | Zn/Al coating of steel wires | ||
| Compound of protection | 95%Zn/5%Al | ||
| Coating thickness | ≥115 g/m² | ≥150 g/m² | ≥150 g/m² |
Bearing resistance of the mesh | 80/110 kN | 180/240 kN | 180/240 kN |
Bearing resistance of the mesh | 10/10 kN | 30/45 kN | 50/75 kN |
Bearing resistance of the mesh | 40/55 kN | 90/120 kN | 140/185 kN |
Product drawing details
1. wire diameter d=
2. mesh size x*y=
3. incircle Di=
4. length ni=
5. width nq=
Feature:
Easy construction, no special techniques.
Strong corrosion resistance and weather resistance.
Good stability and not easy collapse.
Good flexibility to increase the buffer force of objects.
Easy installation and saving transportation costs.
A long service life.
Application:

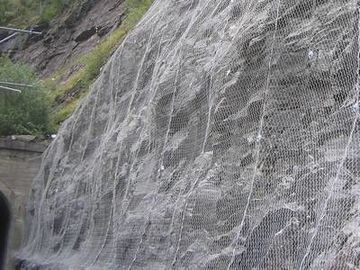

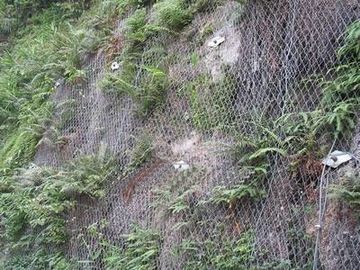

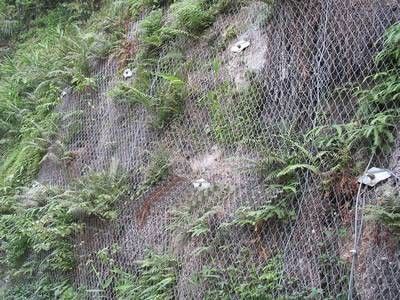

Slope protection.
Bank protection.
Mountain protection.
Adequate inventory
